PVC Helix Reinforced Suction Hose

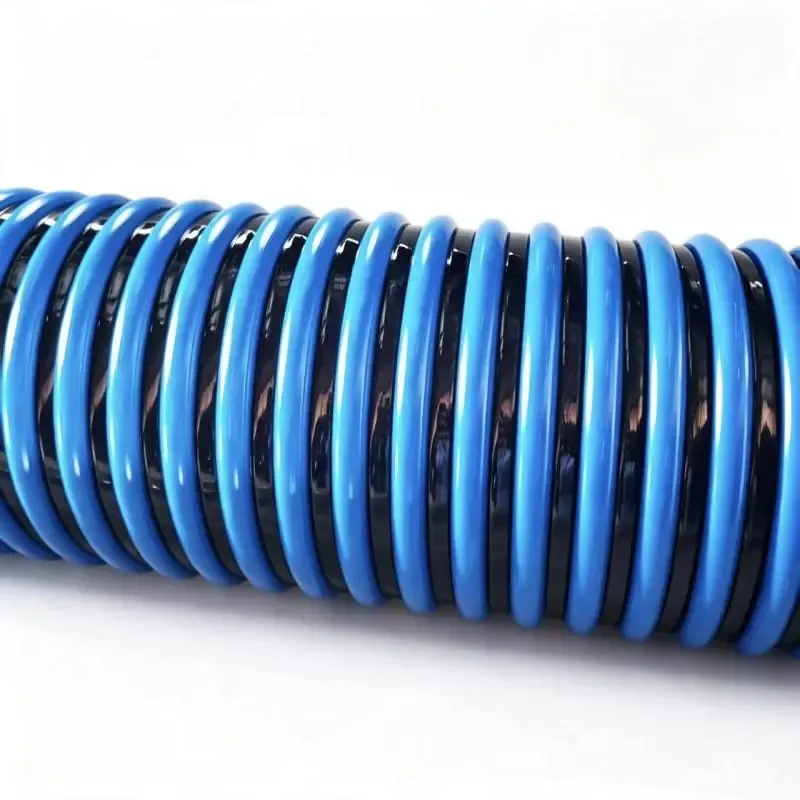

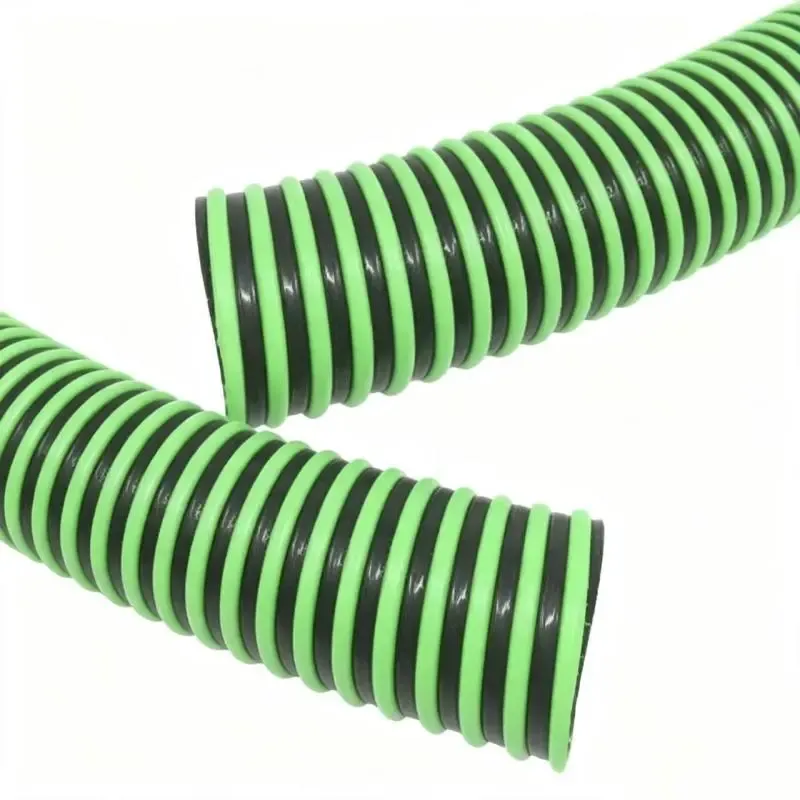

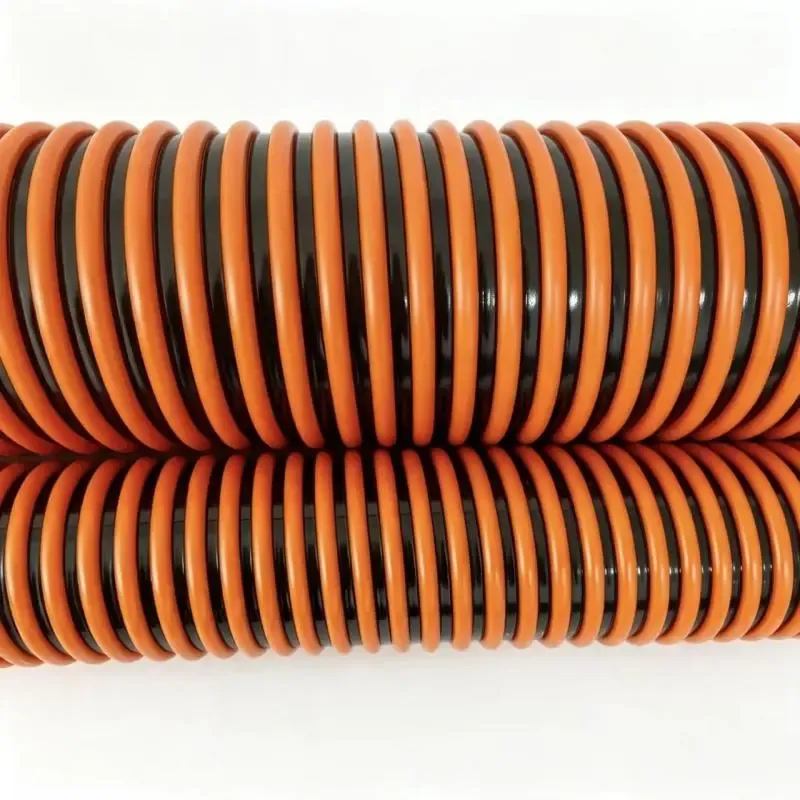

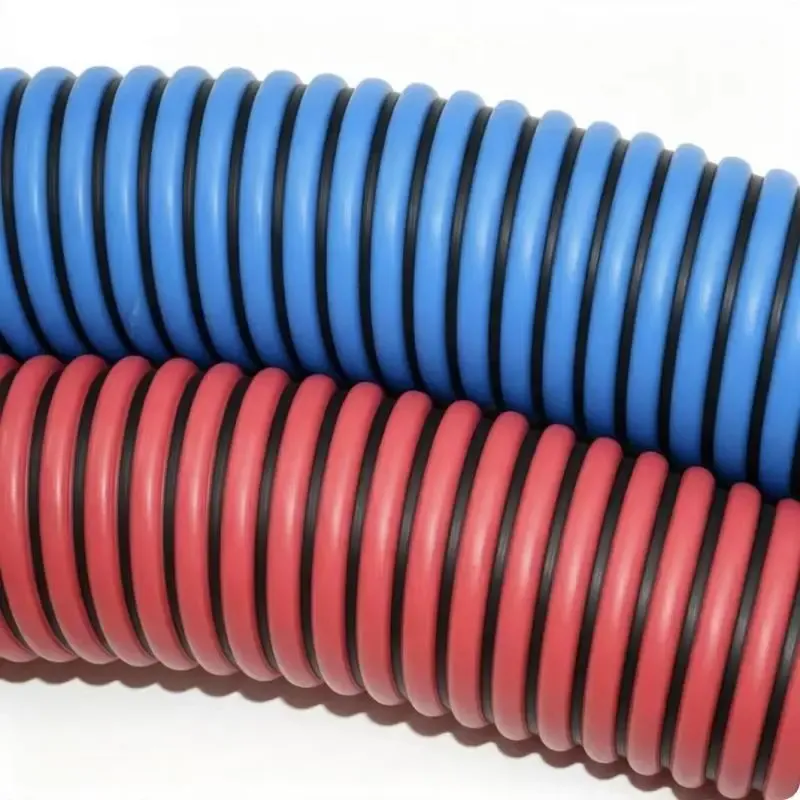

PVC Helix Reinforced Suction Hose from WANRUIGUDE New Materials. Material: Flexible PVC tube wall + impact-resistant rigid PVC spiral helix.
Specifications
- Product Series
- TW-PVC-08
- Material
- Flexible PVC tube wall + impact-resistant rigid PVC spiral helix
- Construction
- Flexible PVC tube wall and rigid PVC spiral reinforcement are continuously co-extruded. The hose has a smooth inner surface and a spiral-ribbed outer surface, combining flexibility with resistance…
- Color
- Transparent green, blue, gray, black, and orange (custom colors available)
- Size Range
- ID 25-203 mm (approx. 1"-8")
- Working Pressure
- 0.15-0.5 MPa (1.5-5 bar at 23°C); maximum vacuum approximately 9 mH₂O
- Burst Pressure
- 0.45-1.5 MPa (approximately 3× working pressure, depending on size)
- Temperature Range
- −5°C to 60°C (special low-temperature compounds can extend the range to −25°C to 55°C)
- Standard Length
- 20m/30m (length and weight customizable)
- MOQ
- 1,000 m or 1 metric ton (recommended; confirm by size)
- Lead Time
- 10-20 days (standard sizes; subject to order confirmation)
- Customization
- Inside/outside diameter, wall thickness, color, length, logo printing, cold-resistant/oil-resistant/antistatic compounds, spiral-rib dimensions, and matching couplings
PVC Helix Reinforced Suction Hose is a B2B hose option built from Flexible PVC tube wall + impact-resistant rigid PVC spiral helix. Typical source-listed applications include Agricultural irrigation suction and discharge; pump-truck and water-pump connections; municipal drainage; sewage and septic-tank cleaning; construction dewatering; marine and aquaculture water transfer.
Construction: Flexible PVC tube wall and rigid PVC spiral reinforcement are continuously co-extruded. The hose has a smooth inner surface and a spiral-ribbed outer surface, combining flexibility with resistance to crushing and collapse. The supplied master sheet lists a working-pressure range of 0.15-0.5 MPa (1.5-5 bar at 23°C); maximum vacuum approximately 9 mH₂O and a burst-pressure range of 0.45-1.5 MPa (approximately 3× working pressure, depending on size).
Documented size range: ID 25-203 mm (approx. 1"-8"). Documented standard length: 20m/30m (length and weight customizable). Documented temperature range: −5°C to 60°C (special low-temperature compounds can extend the range to −25°C to 55°C).
Source-listed performance features include Vacuum and collapse resistant; abrasion and weather resistant; flexible and lightweight; smooth bore; resistant to many mild acids and alkalis; suitable for both suction and positive pressure; good bending performance.
For selection and quotation, provide the conveyed medium, application, required inside diameter, length, operating pressure or vacuum, coupling type, quantity and destination. Commercial reference: documented MOQ 1,000 m or 1 metric ton (recommended; confirm by size); documented lead time 10-20 days (standard sizes; subject to order confirmation). Available customization: Inside/outside diameter, wall thickness, color, length, logo printing, cold-resistant/oil-resistant/antistatic compounds, spiral-rib dimensions, and matching couplings.
