PVC Layflat Hose
High-Pressure Double-Sided PVC Coated Layflat Hose
High-Pressure Double-Sided PVC Coated Layflat Hose from WANRUIGUDE New Materials. Size range: Inner diameter 40mm~150mm (1.5"~6"). Working pressure: 1.0~2.0 MPa (10~20 bar).
Specifications
- Product Series
- TW-PVC-02
- Material
- Inner and outer layers of high-quality wear-resistant PVC resin + middle layer of high-strength polyester industrial filament braided reinforcement

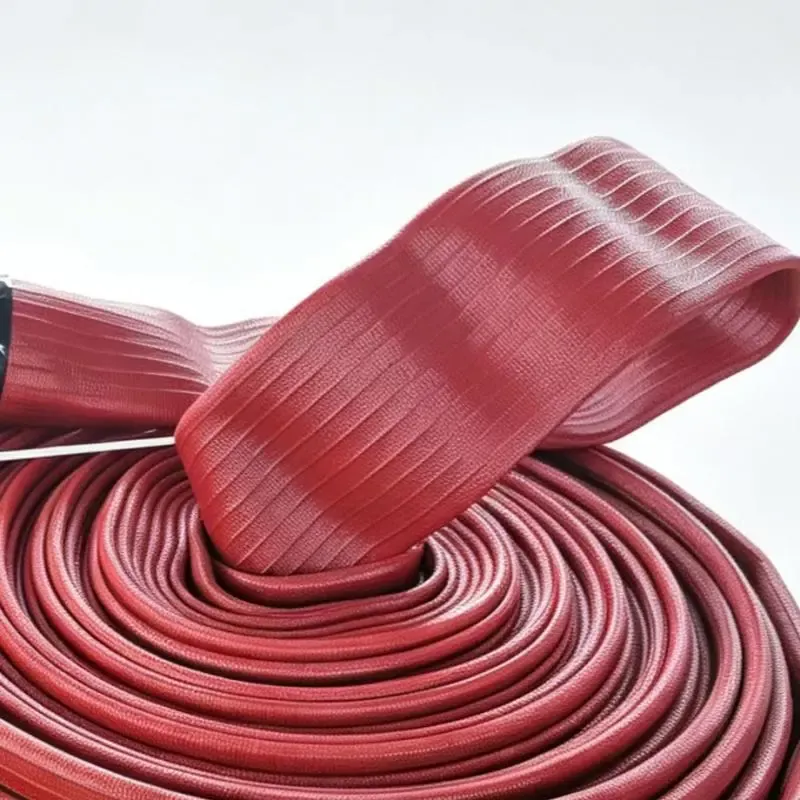

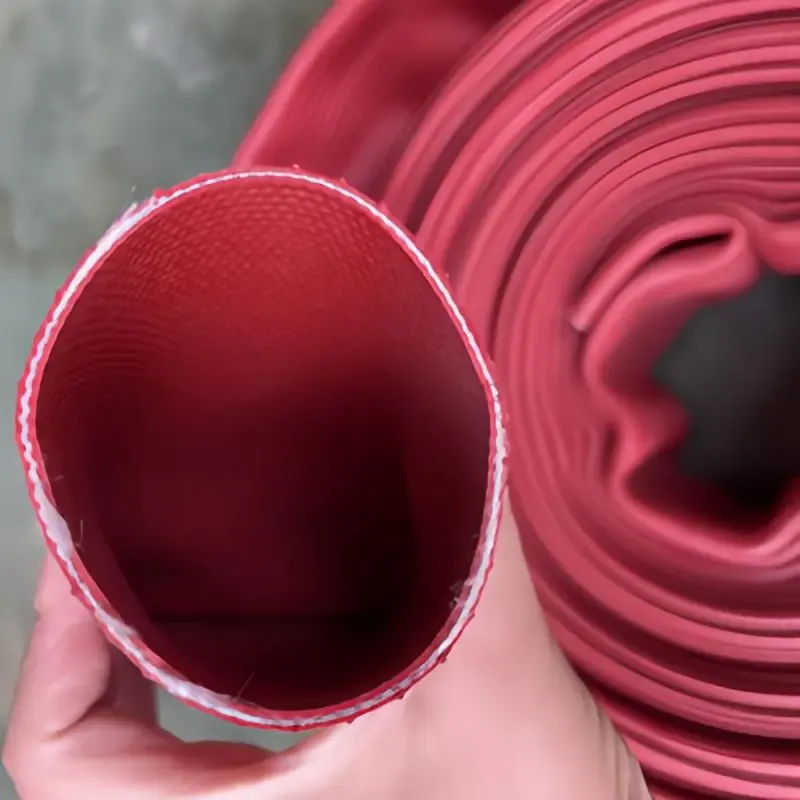

- Construction
- Three-layer composite structure: double-sided high-quality PVC coating on inner and outer surfaces + middle high-strength polyester filament circular woven reinforcement layer, double-sided dipping…
- Color
- Red, black (customizable)
- Size Range
- Inner diameter 40mm~150mm (1.5"~6")

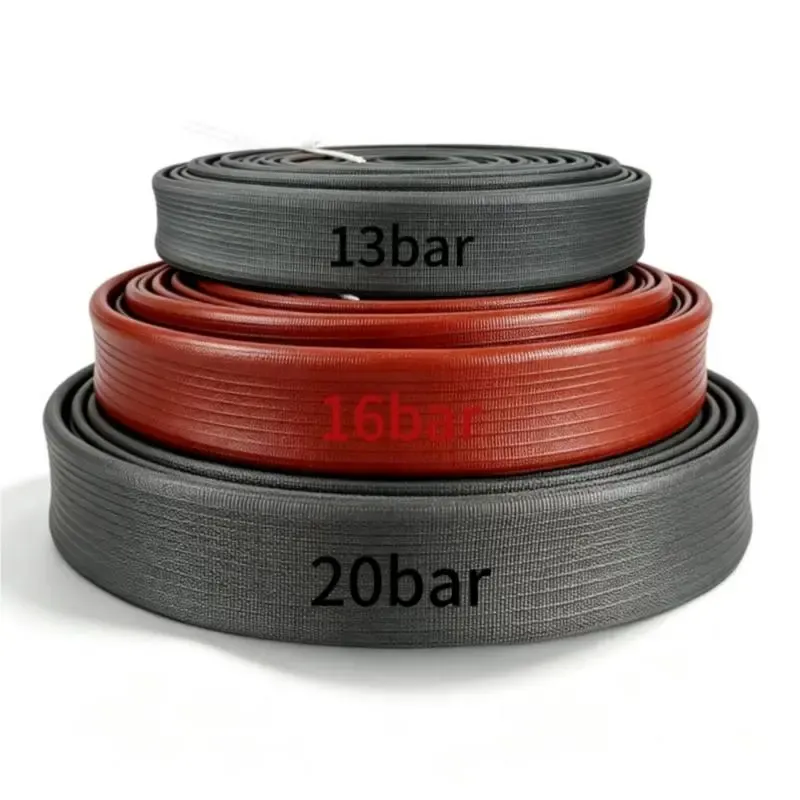

- Working Pressure
- 1.0~2.0 MPa (10~20 bar)
- Burst Pressure
- ≥3 times working pressure (3~6 MPa)
- Temperature Range
- < 75°C
- Standard Length
- 20m / 25m / 30m (customizable)
- MOQ
- 5000 meters (standard specifications)
- Lead Time
- 15~25 days
- Customization
- Color, length, pressure rating, wall thickness, wear resistance level, printed logo, specialized fitting accessories
High-Pressure Double-Sided PVC Coated Layflat Hose is a B2B hose option built from Inner and outer layers of high-quality wear-resistant PVC resin + middle layer of high-strength polyester industrial filament braided reinforcement. Typical source-listed applications include High-rise building fire water supply, mine high-pressure water conveyance, industrial high-pressure water supply and drainage, sand and slurry pumping, long-distance water conveyance in mountainous areas, engineering drainage.
Construction: Three-layer composite structure: double-sided high-quality PVC coating on inner and outer surfaces + middle high-strength polyester filament circular woven reinforcement layer, double-sided dipping process The supplied master sheet lists a working-pressure range of 1.0~2.0 MPa (10~20 bar) and a burst-pressure range of ≥3 times working pressure (3~6 MPa).
Documented size range: Inner diameter 40mm~150mm (1.5"~6"). Documented standard length: 20m / 25m / 30m (customizable). Documented temperature range: < 75°C.
Source-listed performance features include High pressure rating, high wear and puncture resistance, acid and alkali corrosion resistant, leak-proof, long service life, suitable for complex and harsh working conditions.
For selection and quotation, provide the conveyed medium, application, required inside diameter, length, operating pressure or vacuum, coupling type, quantity and destination. Commercial reference: documented MOQ 5000 meters (standard specifications); documented lead time 15~25 days. Available customization: Color, length, pressure rating, wall thickness, wear resistance level, printed logo, specialized fitting accessories.
